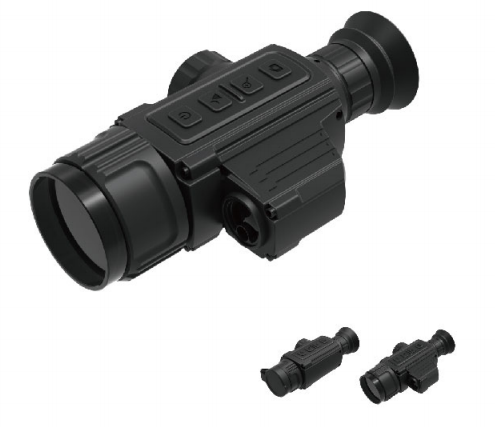

Top- FW-RS519-640 Thermal Imaging Night Vision Device With 1440*1080 OLED Display And NETD ≤35mk F1.0

Product Categories

XIXIAN FORWARD TECHNOLOGY LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Top FWRS519640 Thermal Imaging Night Vision Device With 14401080 OLED Display And NETD 35mk F10
Brand: Forward
Price: 1 USD

Brand Name : Forward

Model Number : FW-RS519-640

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 100 pcs/year

Delivery Time : 5-8 work days

Detection Type : Vanadium Oxide Uncooled Focal Plane

NETD : ≤35mk@F1.0

Focal distance : 35mm

Display : 1440*1080 OLED

Contact Now

Features of FW-RS519-640 Thermal imaging night vision device

640*512 Vanadium Oxide Uncooled Focal Plane
High resolution 1440*1080,High-performance display.
With image WIFI transmission and built-in video recording and photo taking functions
1000m precise laser distance measurement
IP66 waterproof and dustproof

Specifications of FW-RS519-640 Thermal imaging night vision device

Detector Type	Vanadium Oxide Uncooled Focal Plane
Resolution	640*512
Pixel spacing	12μm
NETD	≤35mk@25℃
Frame rate	50Hz
Focal distance	35mm/F1.0
FOV	12.5°*10.0°
Image mode	White hot, black hot, red hot.iron red
Basic magnification	2.3x
Image transmission	WIFI Real-time image transmission, supports mobile phone APP image browsing, photo taking and video recording functions
Focus	Manual focus
Display	0.39inch,color OLED,resolution1440*1080
Humidity	0-95%
Electronic zoom	X2,X4
Battery	Lithium battery,>5h
Basic magnification	1.91x~7.64x
Eyepiece magnification	15x
Laser Distance Measurement	Wavelength:905nm,Measuring range:Longest1000m,Shortest10m.
Protection level	IP66
Down	1m
Woking Temperature	-30℃~+55℃
Storage temperature	-40℃~+70℃
Weight	525g;With laser ranging function 587g
Size	190mm80mm65mm;With laser ranging function 190mm110mm65mm
Detection distance	Pepole 1.8m*0.5m 1400m
Detection distance	Car 2.3m*2.3m 2200m
Identification distance	Pepole 1.8m*0.5m 700m
Identification distance	Car 2.3m*2.3m 1100m

Top- FW-RS519-640 Thermal Imaging Night Vision Device With 1440*1080 OLED Display And NETD ≤35mk F1.0
